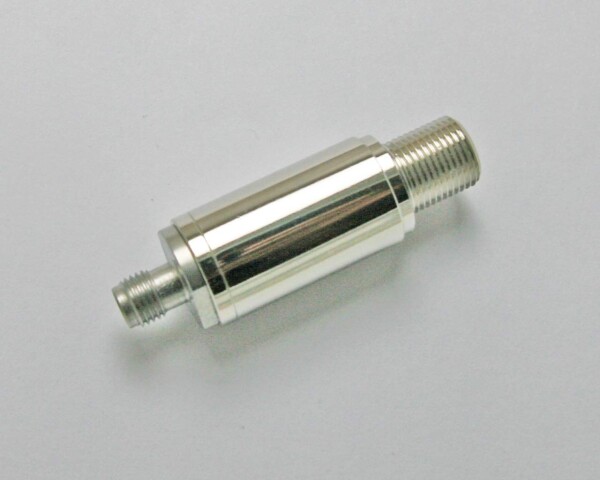

AEC SMA female/F female Impedance Matching Pad MP-1001S-SA25TA-FS27TA
11,380円(税込)
0ポイント(1％)
商品説明
Frequency Range : DC~3GHz
Broadband application for impedance matching
Insertion Loss : 5.7±0.5 dB / Low VSWR : 1.2 max.
The product is printed with the aeco RF logo. It is AEC's own brand of RF measurement components.
Package include:1 x dc block
Broadband application for impedance matching
Insertion Loss : 5.7±0.5 dB / Low VSWR : 1.2 max.
The product is printed with the aeco RF logo. It is AEC's own brand of RF measurement components.
Package include:1 x dc block
Material:
F type Body: Brass
F type Contact Pin: Beryllium Copper
F type Insulator: PTFE
SMA Body: Stainless Steel
SMA Contact Pin: Beryllium Copper
SMA Insulator: PTFE
Shell: Brass
Finished:
F type Body: Nickel Plated
F type Contact Pin: Gold Plated
SMA Body: Passivated
SMA Contact Pin: Gold Plated
Shell: Nickel Plated
Electrical Characteristics:
Wideband coverage: DC to 3GHz
Insertion Loss: 5.7±0.5 dB
VSWR: 1.2 max.
Product Dimension:
Length: 45.8mm
Diameter: 14mm
Weight: 26g
Packing:
Zip Bag(1Pc/1Set)
| 商品コード | 64076525314 |
|---|---|
| 商品名 | AEC SMA female/F female Impedance Matching Pad MP-1001S-SA25TA-FS27TA |
| 型番 | MP-1001S-SA25TA-FS27TA |
※他モールでも併売しているため、タイミングによって在庫切れの可能性がございます。その際は、別途ご連絡させていただきます。
